Manufacturing

    A drawing-led route to repeat production.

    See the manufacturing path and factory views that support Omalco's aluminium profile work.

    Upload a DrawingTechnical Capabilities
    Aluminium profiles on the orange handling line inside the Omalco factory

    Manufacturing floor

    Factory views grounded in Omalco photography.

    Company-supplied photographs show the extrusion line, profile handling, press equipment and finished-profile storage. Alternate angle views are generated from those references to show the same working areas from more useful viewpoints.

    Aluminium profiles on the orange handling line inside the Omalco factory

    Extrusion production line

    Extrusion line and profile handling.

    Long aluminium extrusions travelling across the factory runout and handling table

    Runout and profile handling

    Runout table and profile handling.

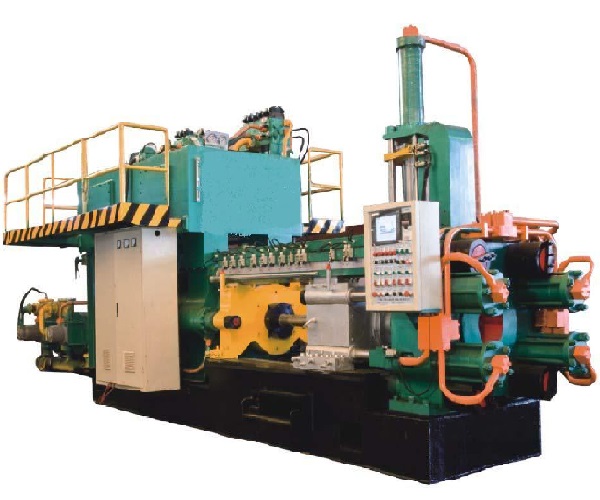

    Close view of the extrusion press mechanism, hydraulic lines and machine scale

    Press mechanism detail

    Press mechanism and operating area.

    Omalco production floor with overhead crane, profile handling equipment and operator station

    Production floor and handling

    Production floor and material handling.

    Long aluminium profiles stored on blue and yellow racks inside the Omalco factory

    Finished profile storage

    Finished profile storage.

    Bundled long aluminium profiles beside electrical control cabinets in the Omalco factory

    Bundled profile stock

    Bundled long-profile stock.

    Wide entrance view across organised bundles of aluminium extrusion profiles in the Omalco stockyard

    Stockyard entrance angle

    Wide view across organised profile bundles.

    Low aisle view between bundled aluminium profiles leading toward the stockyard crane

    Stockyard aisle angle

    Low aisle view toward the overhead crane.

    Opposite-corner view of Omalco extrusion equipment, handling line and overhead crane

    Production floor alternate angle

    Opposite-corner view of extrusion and handling equipment.

    Lengthwise view along the Omalco extrusion line and aluminium profile handling table

    Extrusion line lengthwise

    Lengthwise view along the profile handling line.

    Close side view of rollers, support frames and aluminium profiles on the Omalco runout table

    Runout rollers side angle

    Closer view of rollers, supports and profile ends.

    Operator-side angle of the Omalco extrusion press, hydraulic lines and profile rollers

    Press operator-side angle

    Three-quarter view of the press mechanism and controls.

    Aisle-level view through Omalco blue and yellow racks holding aluminium profiles

    Profile storage aisle angle

    Aisle-level view through finished-profile racks.

    Drawing to dispatch

    One visible manufacturing path.

    Follow the main stages from drawing review through extrusion, finishing, inspection, packing and dispatch.

    1. 01

      Drawing and requirement

      Application, geometry, volume, finish and delivery inputs are reviewed together.

    2. 02

      Tooling route

      Die development and trial needs are defined for the controlled cross-section.

    3. 03

      Extrusion

      The profile is assigned to the available press and process route after feasibility review.

    4. 04

      Straightening and cutting

      Finished length and dimensional requirements are tied to the order specification.

    5. 05

      Finish and secondary work

      Finish, drilling, tapping, cutting or machining requirements are coordinated.

    6. 06

      Inspection

      The agreed dimensional, surface and documentation checks are completed.

    7. 07

      Packing and dispatch

      Profiles are protected, identified and prepared for the agreed delivery route.

    Drawing-led RFQ

    Have a profile drawing?

    Send us your cross-section for manufacturability review. Alloy, temper and tolerance fields can be left unknown.

    Upload drawingDiscuss requirement

    Process understanding

    How aluminium extrusion profiles are manufactured

    The manufacturing route connects billet and die preparation, extrusion, cooling, stretching, cutting, ageing where specified, inspection, finishing, fabrication, packing, and dispatch controls.

    Aluminium extrusion manufacturing process

    Actual parameters depend on alloy, billet, profile geometry, press route, temper, finish, cut length, downstream operations, and the approved control plan. The website explains the sequence without publishing universal process settings.

    From extrusion plant to released profile

    A repeatable aluminium profile supply route needs drawing control, lot identification, characteristic inspection, nonconformance handling, packing requirements, and agreed release documentation.
